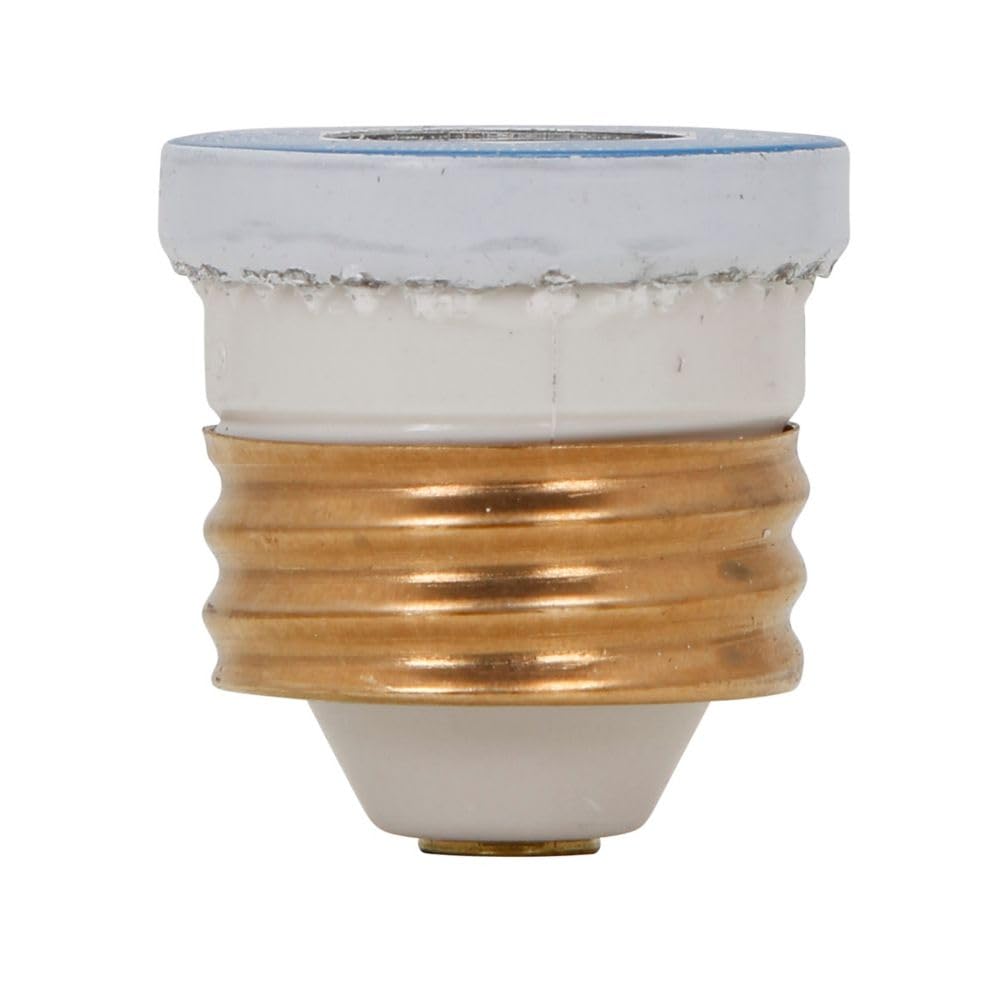

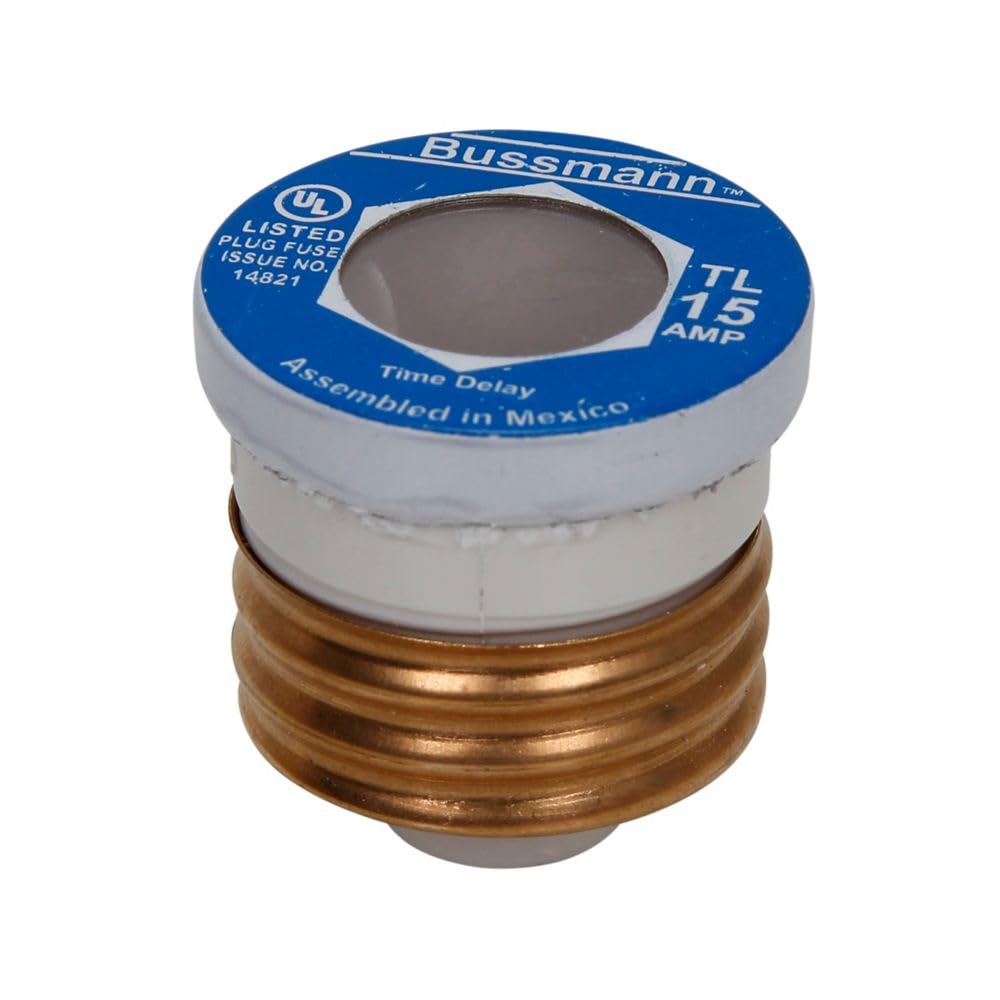

Eaton Bussmann series TL 15 Amp, 125 Vac and IR 10 kA, Retail Pack - 3 Pieces
9 sold in last 24 hours
- Medium duty time-delay plug fuse
- Will withstand typical motor starting surges
- Use in residential or light-duty circuits that contain electric motors with Edison base size
- Time-Delay Plug Fuse
- Use in residential or light-duty circuits that contain electric motors
- Edison base size
- These fuses thread into fuse receptacles
Tags |
Estimated shipping
Select a product to estimate shipping.1. Medium duty time-delay plug fuse 2. Will withstand typical motor starting surges 3. Use in residential or light-duty circuits that contain electric motors with Edison base size
Medium-Duty Type TL fuse for residential motor circuits in kitchens, workshops, garages, utility rooms or any circuit with motors, relays or solenoids. This fuse threads into fuse receptacle. Threaded fuse type: Edison Base (brass threads). Not interchangeable with Rejection Base (porcelain threads) type. Medium-duty (TL) category plug fuse. The medium-duty fuse (TL) has a time-delay feature for use on motor circuits. Plug fuses are rated for a maximum of 125Vac. TL three pack (PK3) version (blister pack). Plug fuses are often used in residential and industrial branch circuit and motor protection. Fuses are used to protect furnace blower motors, pumps, power tools, garage door openers, etc. Motor protection fuses are usually used in conjunction with branch circuit protection. The fuse is often located in a box cover unit. Plug fuses provide a compact and inexpensive method to prevent damage to electrical motors. They help reduce downtime and lower maintenance costs by opening the circuit when a dangerous overload is present. When used for residential branch circuit protection, fuses are typically located in the main fuse panel.
| Main Specification | |
|---|---|
| PŘÍLOHA | UL or CE |
| Materiál | Plastové or Brass |
| Výrobce | BUSSMANN |
| Počet jednotek | 1 Počet |
| Rozměry prvku L x W x H | 5.5 X 2.75 X 1.25 Inches |
| Aktuální hodnocení | 15 A |
| Adaptér AC proud | 15 A |
| Značka | Bussmann |
| UPC | 051712102315 |
| Počet položek | 1 |
| Zahrnuté komponenty | BP-TL-15 |
| Napětí | 120 voltů |
| Barva | Černé nebo šedé |
| Identifikační číslo globálního obchodu | 00051712102315 |
| Typ montáže | Hora otvorů |
| Hmotnost položky | 22, 68 g |
| Product information | |
| Počet balení | 3 |
| Technical Details | |
| Typ materiálu | Plastové or Brass |
| Číslo části | BP-TL-15 |
| Model | BP/TL-15 |
| Measurements | |
| Rozměry položky | 5.5 x 2.75 x 1.25 inches |
| Others | |
| Typ výrobku | Plug Fuses |
| Maximální proud | 15 A |
