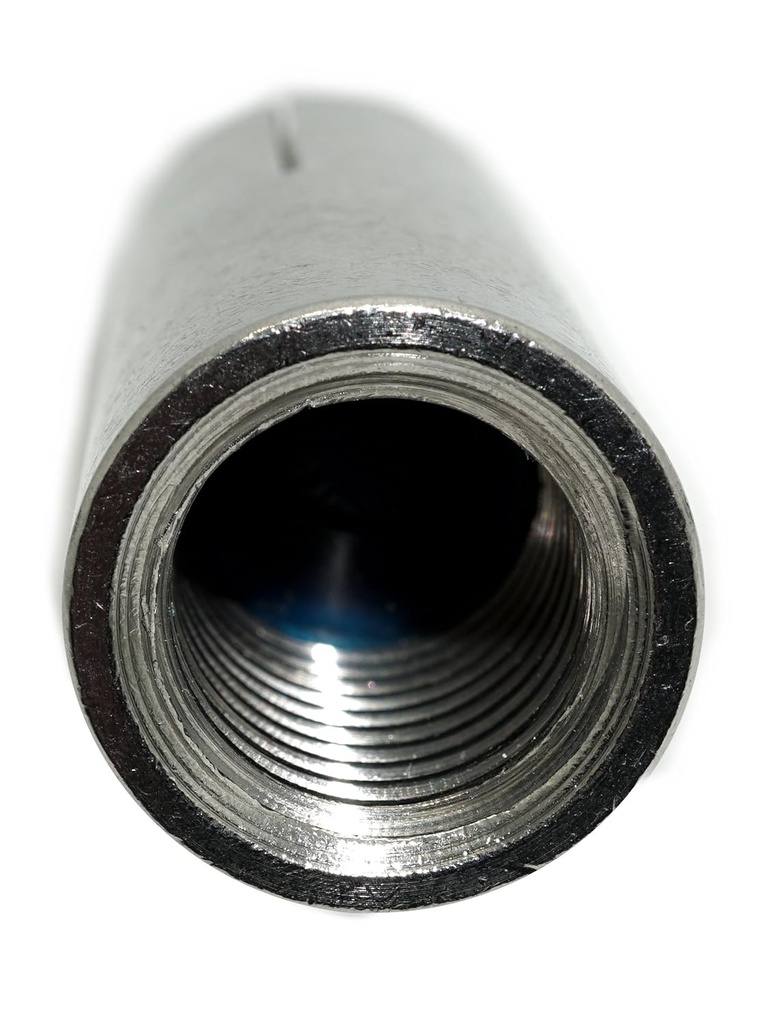

CONFAST 5/8" (Inside/Screw 5/8"-11 Diameter) Drop-in Anchor Zinc Plated with 1 Setting Tool (25 per Box)
8 sold in last 24 hours
- Can only be used in solid concrete
- For use in dry, indoor applications
- Designated diameter equals inside diameter
- FLUSH MOUNT - Nothing sticks up above surface of the concrete
Estimated shipping
Select a product to estimate shipping.Applications
The anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete only, and should never be used in block or brick base material.
Environment
The anchor is designed for use in a Dry environment.
Hole Diameter/Bit Diameter
The anchor requires a 7/8" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Minimum Embedment
The minimum anchor embedment into the concrete is 2-1/2". Therefore, the anchor must be installed so that a minimum of 2-1/2" of the anchor is embedded into the concrete.
Spacing between Anchors
Each anchor must be spaced a minimum distance of 8-3/4" from each other when measured center to center.
Edge Distance
It is very important not to install the anchor any closer than 4-3/8" from an unsupported edge of the concrete.
Package Dimensions
7.95 x 3.66 x 2.72 inches; 8.59 Pounds
| Technical Details | |
|---|---|
| Color | Silver |
| Material | Carbon Steel Zinc Plated |
| Size | 5/8" |
| Fastener Type | Solid |
| Brand | |
| Značka | Confast |
| Others | |
| Typ výrobku | Mechanical Fasteners |
