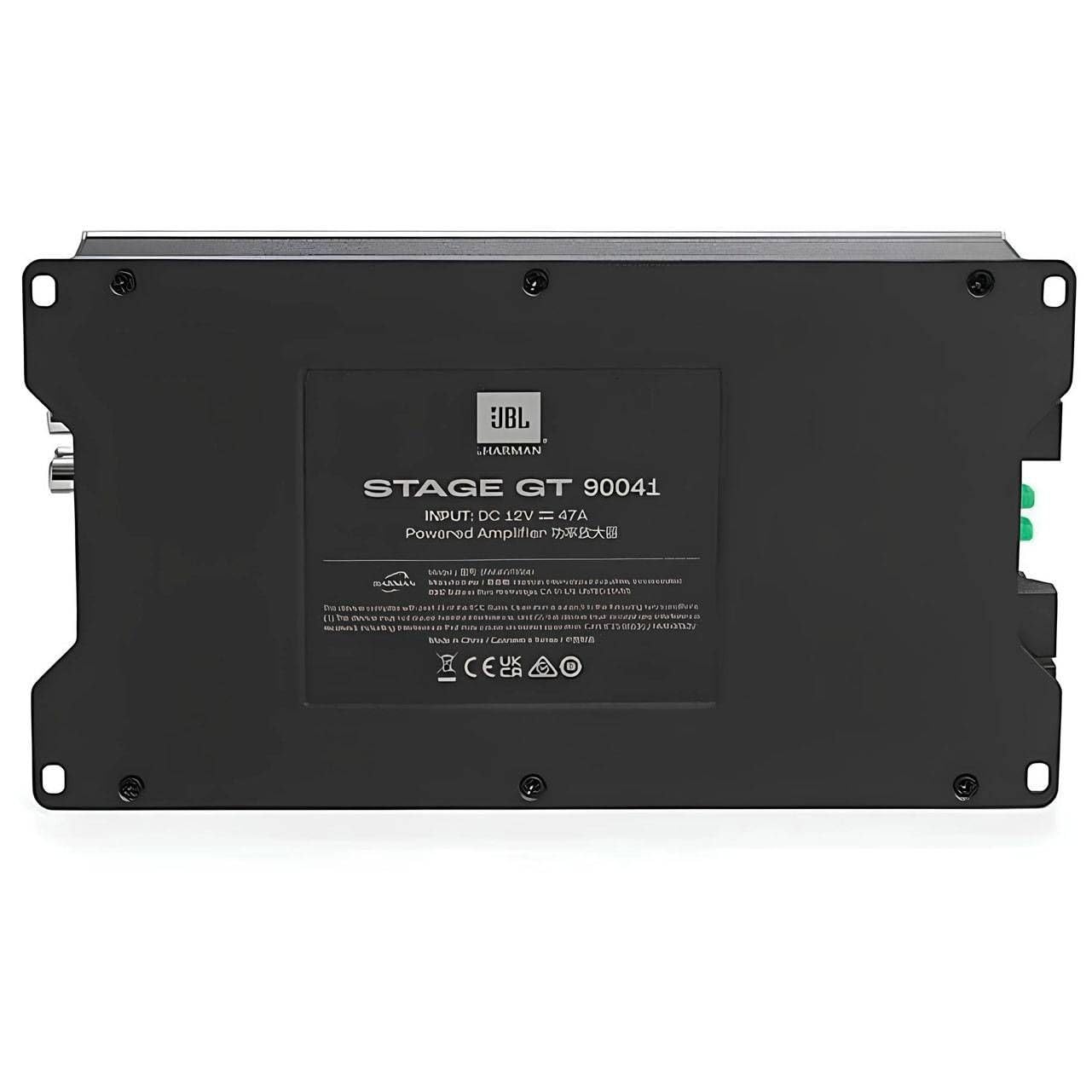

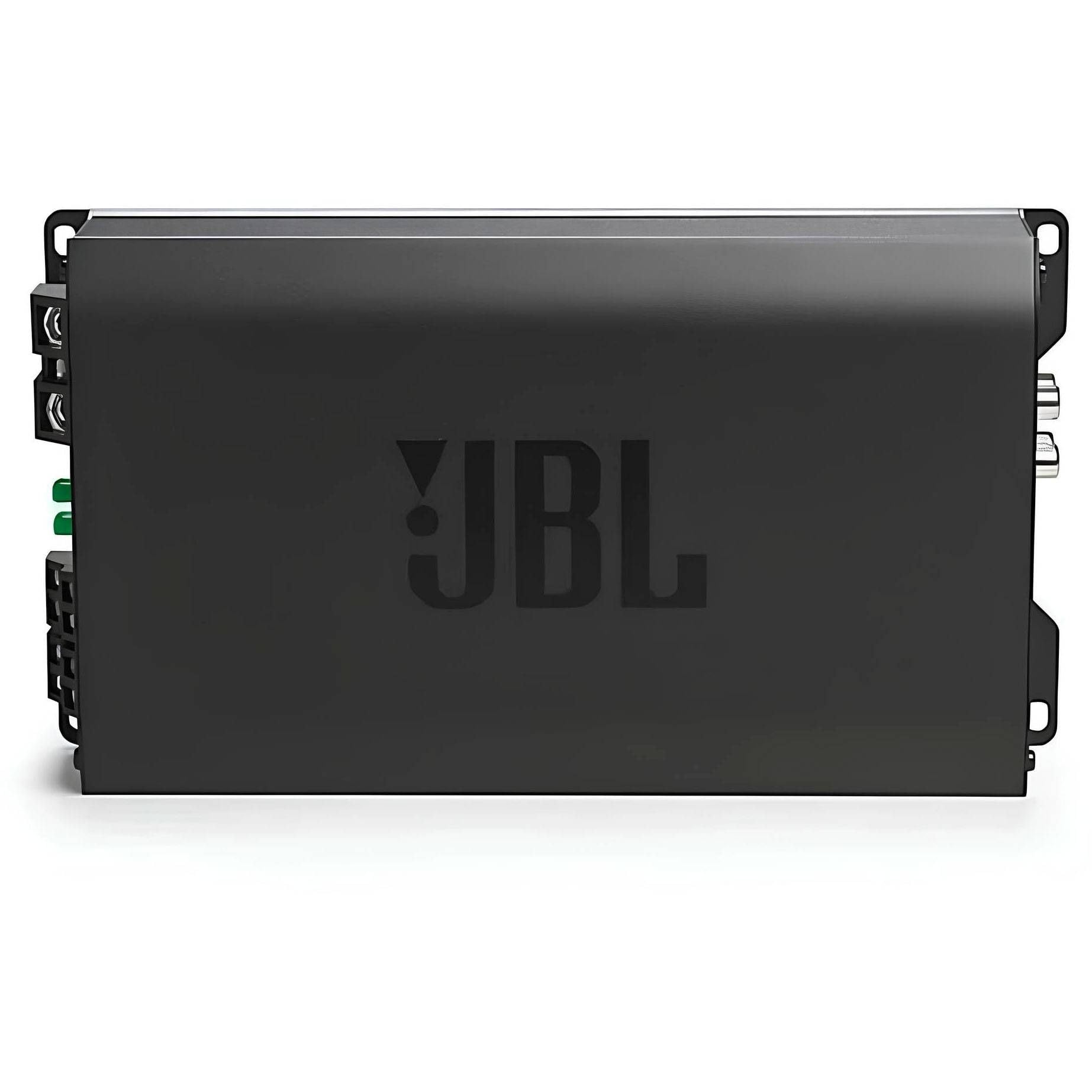

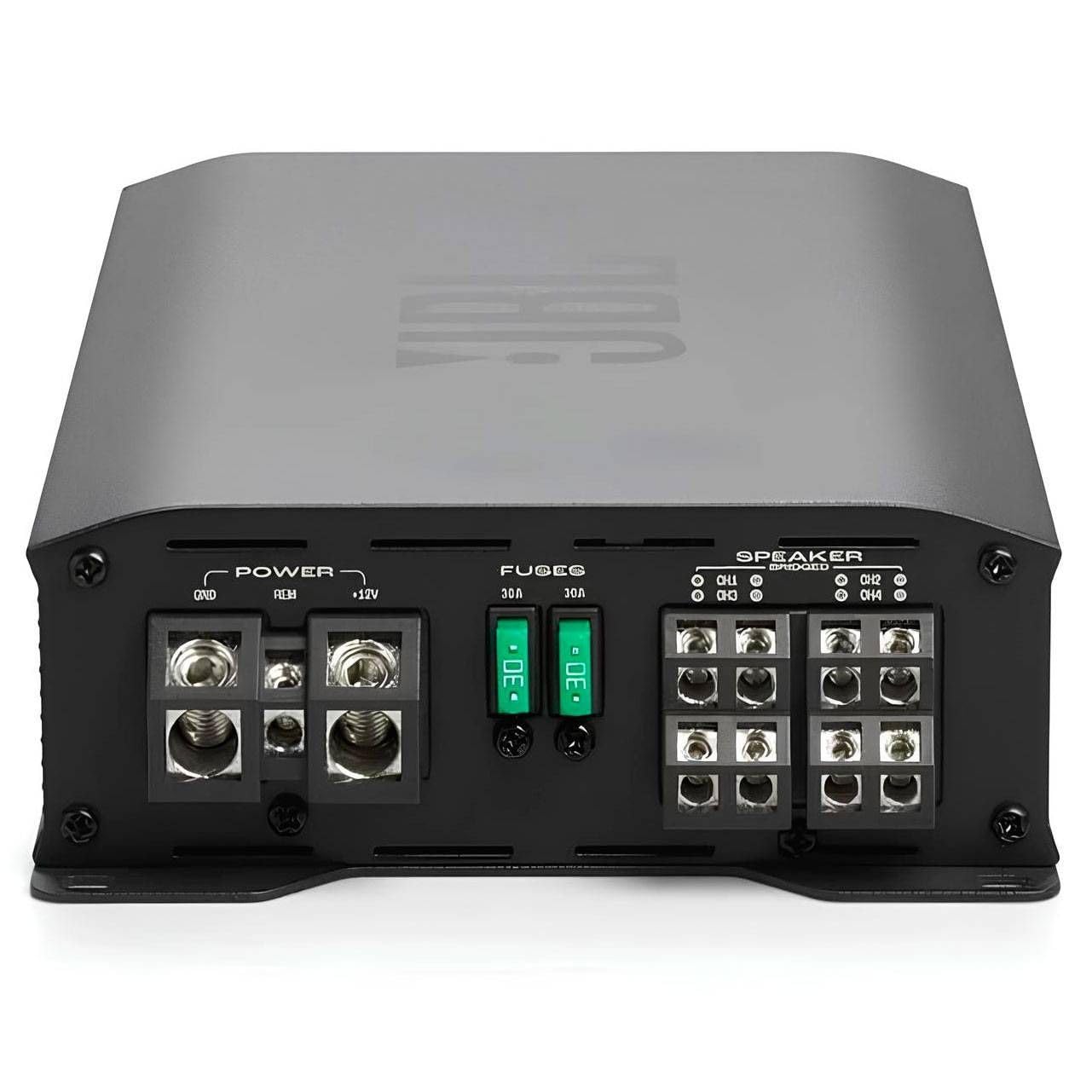

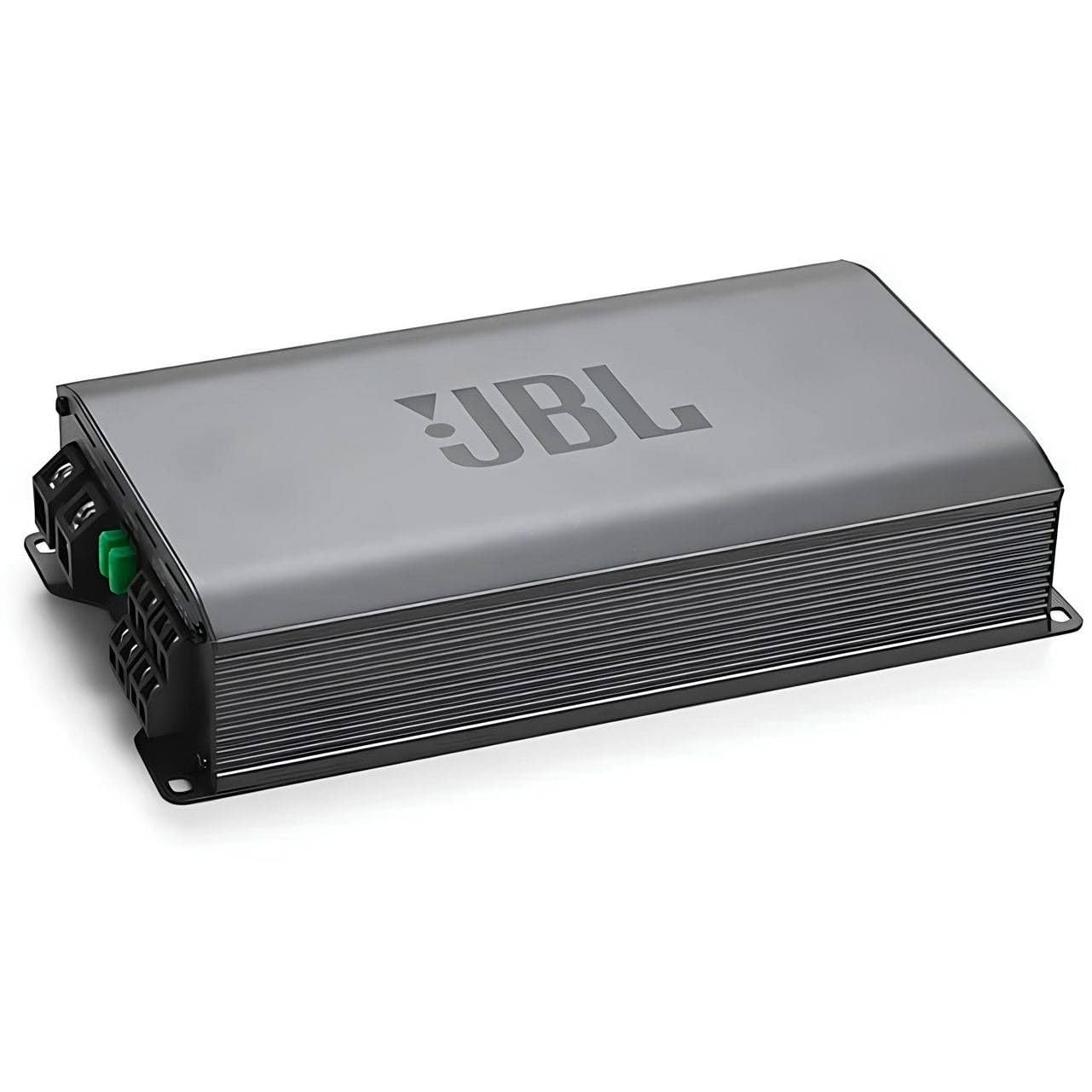

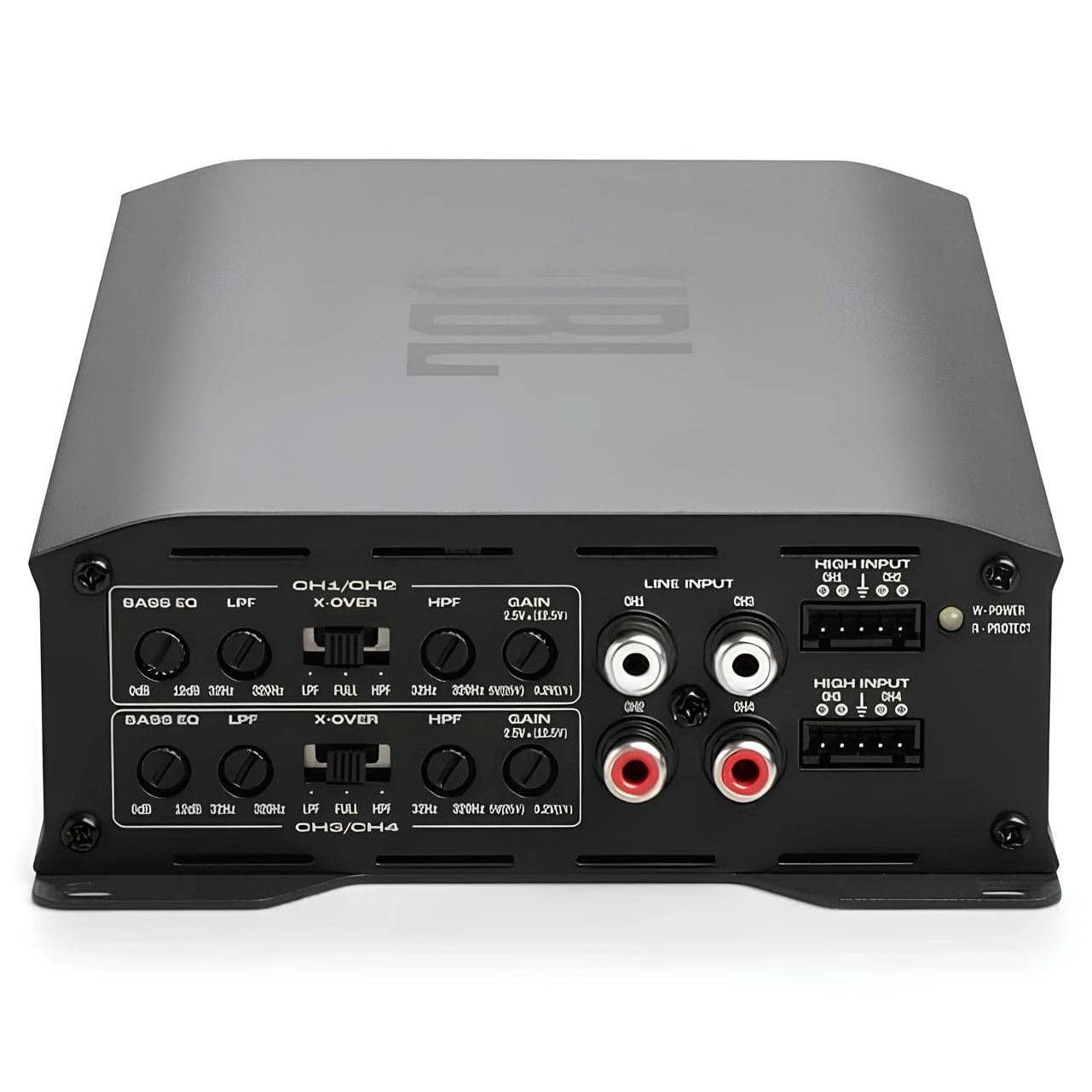

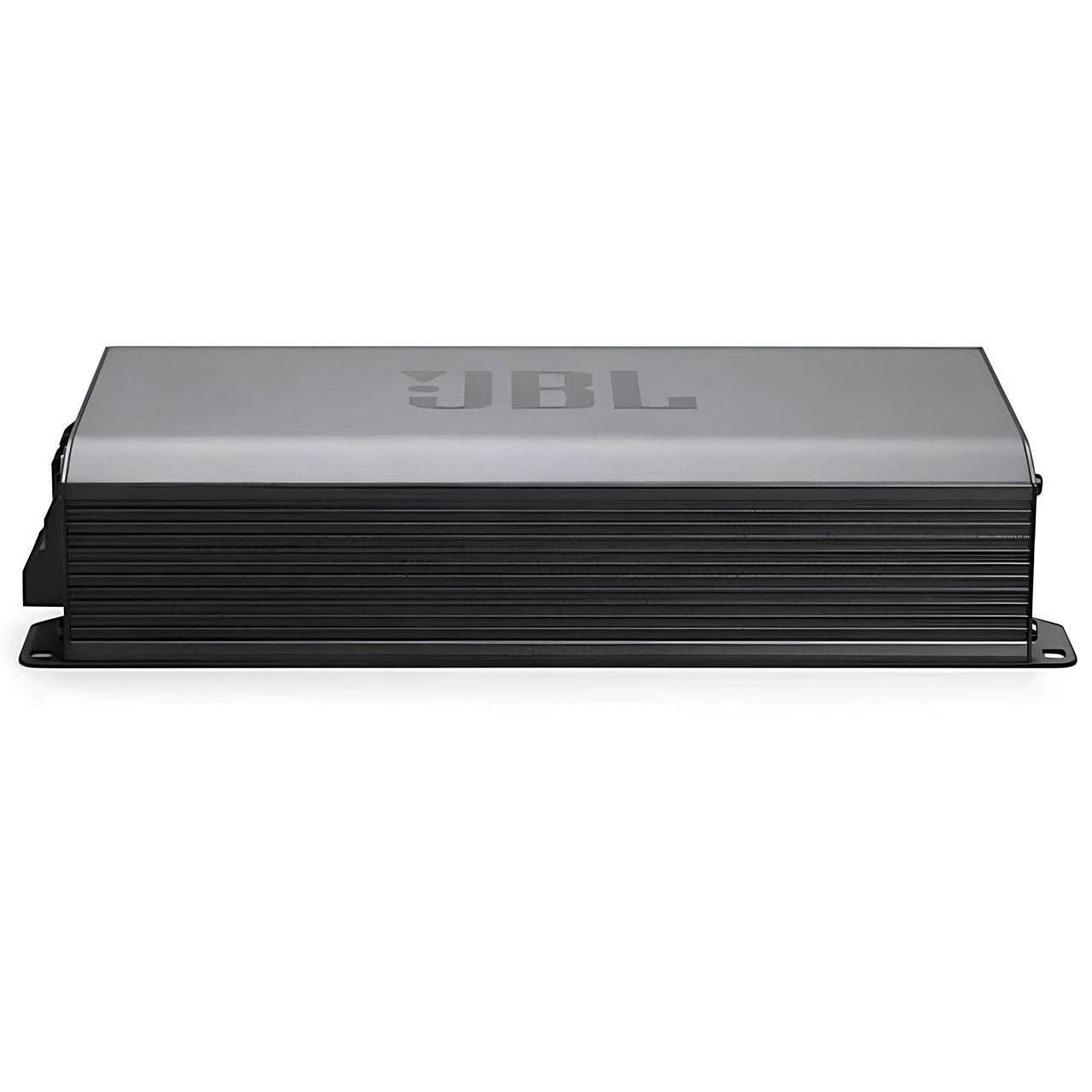

JBL Stage 90041 4 Channel Compact Class D130W RMS Per Channel Car Amplifier
5 sold in last 24 hours
- Four-channel Class-D power: Delivers 130W RMS x4 at 2ohm, 90W RMS x4 at 4ohm, and 260W RMS x2 in bridge mode, with 1480W peak for any configuration
- Variable filters and bass equalization: Adjustable high and low pass filters from 32 to 320 Hz and the Bass EQ from 0-12 dB at 45 Hz allow you to adapt the sound to the vehicle
- Universal Input Compatibility: Sensitivity of 0.2-5V on low level and 1-25V on high level allows you to connect factory or aftermarket radios without additional adapters
- Built-in protections and stable voltage: DCP, OVP, UVP, OCP and OTP circuits together with 9-16V operating range and two 30A fuses ensure reliable operation
- Compact design and start/stop system: Low-profile chassis makes installation in space-saving trunks and maintains continuous audio on automatic engine restarts
Estimated shipping
Select a product to estimate shipping.Stage GT 90041
The Stage GT 90041 is the most powerful amplifier in the series, with 4 channels and up to 130W RMS per channel at 2 ohms. Designed for complex systems, it delivers accurate, reliable power in a compact format.
• Adjustable bass equalizer
Allows bass boost from 0dB to 12dB at 45Hz to adapt the performance of subwoofers and speakers.
• Compatible with OEM load detection
Works seamlessly with factory head units requiring specific resistor, no need for additional modules.
• Crossover controls
Switchable filters with 32Hz to 320Hz adjustment and 12dB/octave slope for precise tuning.
• Immersive sound experience
JBL sound transforms every ride into a vibrant, detailed moment.
• Iconic JBL design
Anodized aluminum body with matte finish, angled caps and glossy logo combining robustness and style.
Technical specifications:
• Maximum power: 1480W peak
• Output power: 260Wrms x 2@ Bridge 4 ohms full range
• Output power: 130Wrms x 4 @ 2 ohms full range
• Output power: 90Wrms x 4 @ 4 ohms full range
• Frequency response: 20Hz - 20kHz ±1dB
• THD+N @ ROP: 1%
• Input sensitivity LOW: 0.2V - 5V, HIGH: 1V - 25V
• Variable high/low pass filters: 32Hz - 320Hz
• Bass equalizer @ 45Hz: 0 - 12dB variable
• Protections: DCP, OVP, UVP, OCP, OTP
• Operating voltage: 9V - 16V
• Fuse value: 30A x 2
What's in the box:
• 1 x amplifier.
• 2 x Spare Fuses
• 2x High Level Input Cables
• 4 x mounting screws with washers
• 2 x Allen keys.
• 2 x JBL stickers.
• 1 x User Manual with QR Code
• 1 x safety sheet.
JBL delivers precise and powerful sound that makes every trip an unforgettable experience.
| Main Specification | |
|---|---|
| PŘÍLOHA | RoHS or Ce |
| Výrobce | Harman International |
| Počet jednotek | 1. 0 Počet |
| Rozměry položky L x W x H | 23.7 x 13.2 x 4.9 Centimeters |
| Značka | JBL |
| Počet položek | 1 |
| Zahrnuté komponenty | 1xAmp manual+safety H-level input cable 4xScrew 2xAllenKey 2xStickers 2xFuse |
| Napětí | 12 voltů |
| Typ montáže | Through-Hole Mount |
| Hmotnost položky | 1702 Grams |
| Product information | |
| EU Náhradní část Doba dostupnosti | 2 Years |
| Počet kanálů | 4 |
| Operating Temperature | 70 Degrees Celsius |
| Počet balení | 1 |
| Technical Details | |
| Číslo části | JBLSTAGEGT90041 |
| Typ materiálu | Aluminium Plastic |
| Item details | |
| Vzorové číslo | JBLSTAGEGT90041 |
| Measurements | |
| Rozměry položky | 23.7 x 13.2 x 4.9 Centimeters |
| Others | |
| Zvýraznění položky | 1480W Peak or 130W RMS x4@2ohm or 260W RMS x2 Bridge - Variable Filters 32-320Hz - Compatible Factory and Aftermarket Radio |
| Typ výrobku | Multichannel Amplifiers |
| Package Type Name | Retail Box |
| Maximum Supply Voltage | 16 Volts |
| Maximální výstupní výkon | 130Wrms x 4 @ 2 ohms |
| Output Power | 130 Watts |
| Minimum Supply Voltage | 9 Volts |
| Supply Current | 60 Amps |
| Preamplifier Output Channel Quantity | 4 |
