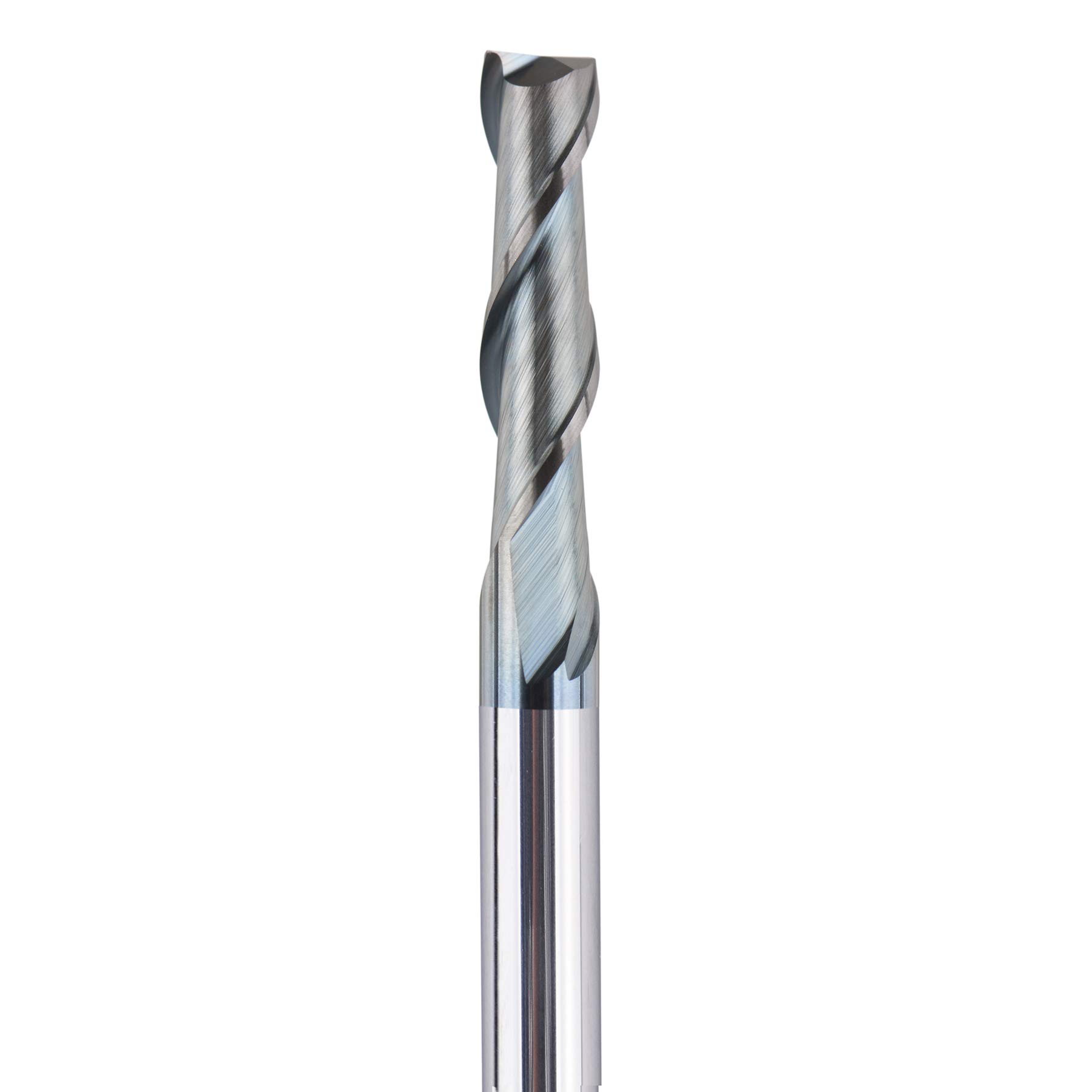

SpeTool 5Pcs 2-Flute Square Nose Carbide End Mill 1/8 Inch Router Bit with 1/8 inch Shank CNC Machine Tools, TiAlN Coated
3 sold in last 24 hours

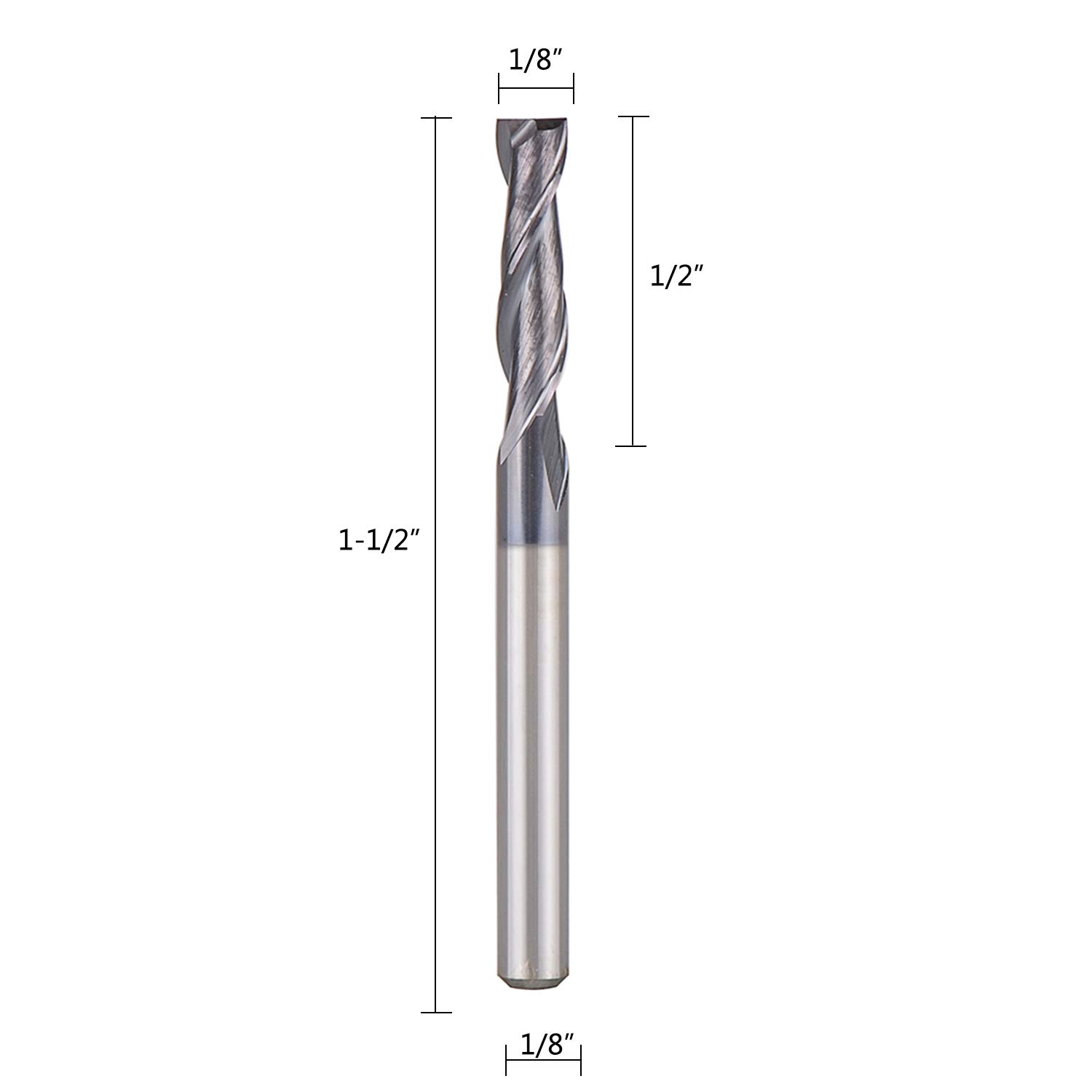

- ENDMILL SIZE. 1/8" shank, 1/8" cutting diameter, 1/2" cutting length, 1-1/2" over all length
- SPECIFICATION. Flat top, 2-flute, HRC55 with tialn coated, use 1/8" collet
- PREMIUM QUALITY. Made of high quality tungsten carbide, precision edge-grinding technology; long service life, not easy to break; excellent cutting results and enhanced productivity
- WIDE APPLICATION. For cnc, engraving machine, carbon steel, mould steel, inconel, stainless steel, titanium alloy etc; suitable for side milling, end milling, finish machining, etc.
- PACKAGE INCLUDE. 5 pieces high quality end mill pack in a individual plastic box
Tags |
Estimated shipping
Select a product to estimate shipping.Solid Carbide Spiral Router Bit with 1/8 inch Shank and 1/8 inch Cutting Diameter, 1/2 inch Cutting Length, 1-1/2 inch for Total Length;
Flat Top with 2-Flute, Material: HRC55 Carbide with TiAlN Coated;
For CNC, Engraving Machine.Carbon Steel, Mould Steel, Inconel, Stainless Steel, Titanium Alloy etc;
The Route Bit Suit for CNC Router and Makita, Bosch, and Any Brand Plunge Router with 1/8" Collet;
End Mill Bits are Suitable for Side Milling, End Milling, Finish Machining, etc.;
| Main Specification | |
|---|---|
| Výrobce | SpeTool |
| Počet jednotek | 1 Počet |
| Cutting Diameter | 0.13 Inches |
| Značka | SpeTool |
| Počet položek | 5 |
| Cut Type | Square |
| Cutting Length | 0.5 Inches |
| Tvar | Straight |
| Hmotnost položky | 0, 04 kg |
| Technical Details | |
| Číslo části | P2E-1/8-5Pcs |
| Model | P2E-1/8-5Pcs |
| Typ materiálu | carbide |
| Number of Flutes | 2 |
| End Cut Type | Square End |
| Tolerance Held | Precision |
| Number of Cutting Edges | 2 |
| Style | |
| Dokončit typy | TiAlN |
| Others | |
| Typ výrobku | Square Nose |
| Rozměry položky L x W | 1.5"L x 0.13"W |
| Název velikosti | 1/8"Shank |
| Helix Angle | 2 degrees |
| Corner Radius | 0.13 inches |
