Compression Flush Trim Router Bit 1/2" Cut Dia., 1-1/8" Length
14 sold in last 24 hours
- 🔨Exact size-Solid carbide compression flush trim router bit, 1-1/8" cutting length,1/2" cutting diameter,1/4" shank,compression cut, top and bottom bearing. For wood flush trimming,forming an exact duplicate of the template.
- 🔨Unique design-Top and bottom bearing design can always pattern cut towards the end corner and also function as a true Flush Trim Router Bit. Allows you rout half the curve in one direction, flip the work piece over and rout the other half in the opposite direction without repositioning your pattern.

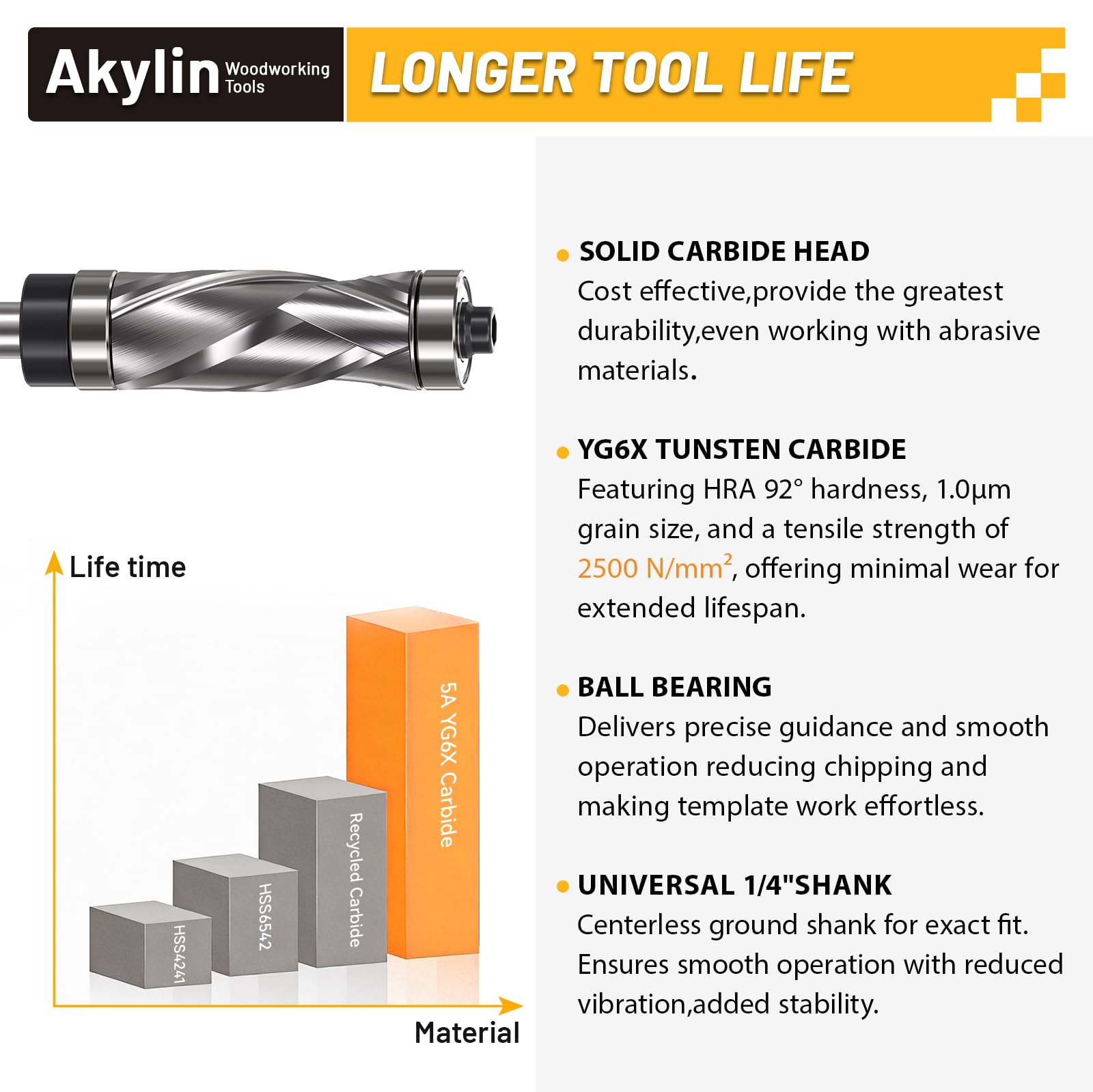

- 🔨Tungsten carbide-YG6X/K10 original carbide head,NOT recycled carbide,HRA 92° hardness, 1.0um grain size, offering minimal wear for extended lifespan.It's cuts extreme durability,aslo with better chip evacuation, less heat buildup, and cleaner edges.Silver induction brazing for maximum strength and durability.
- 🔨Excellent performance-Pattern Bits up-down-cut geometry produces a finish that is unmatched by standard flush trim bits.It produces extremely smooth finished surfaces on some of the most demanding materials and applications.
- 🔨Widely used: The bits perform well on plywood, MDF, solid woods, plastic laminates and non-ferrous metals. It can be used on hand held and table mounted routers. RPM≤ 28 000
- 🔨 An upgraded bearing locking mechanism secures the bearing firmly in place, drastically reducing the risk of ejection to protect your workpiece from damage.
Tags |
Estimated shipping
Select a product to estimate shipping.NOTE:
1.Insert the cutter shanks into the collets as deep as possible,leave 3mm or less shank showing.
2.Before the product is received for using, check the drill bit for cracks or chips,we provide perfect after-sales service.
3.Trial cuts should be made on waste material before starting any project.
Solid Carbide Flush Trim Router Bits 1/4 Shank
Akylin Pattern Router Bit Top Bearing 1/4 Inch Shank,perfet for pattern work, laminate routing & counters general flush trimming, template cutting, edge profiling.
2+2 compression up & downcut design, enabling rapid chip evacuation to ensure a smooth, burr-free surface finish.

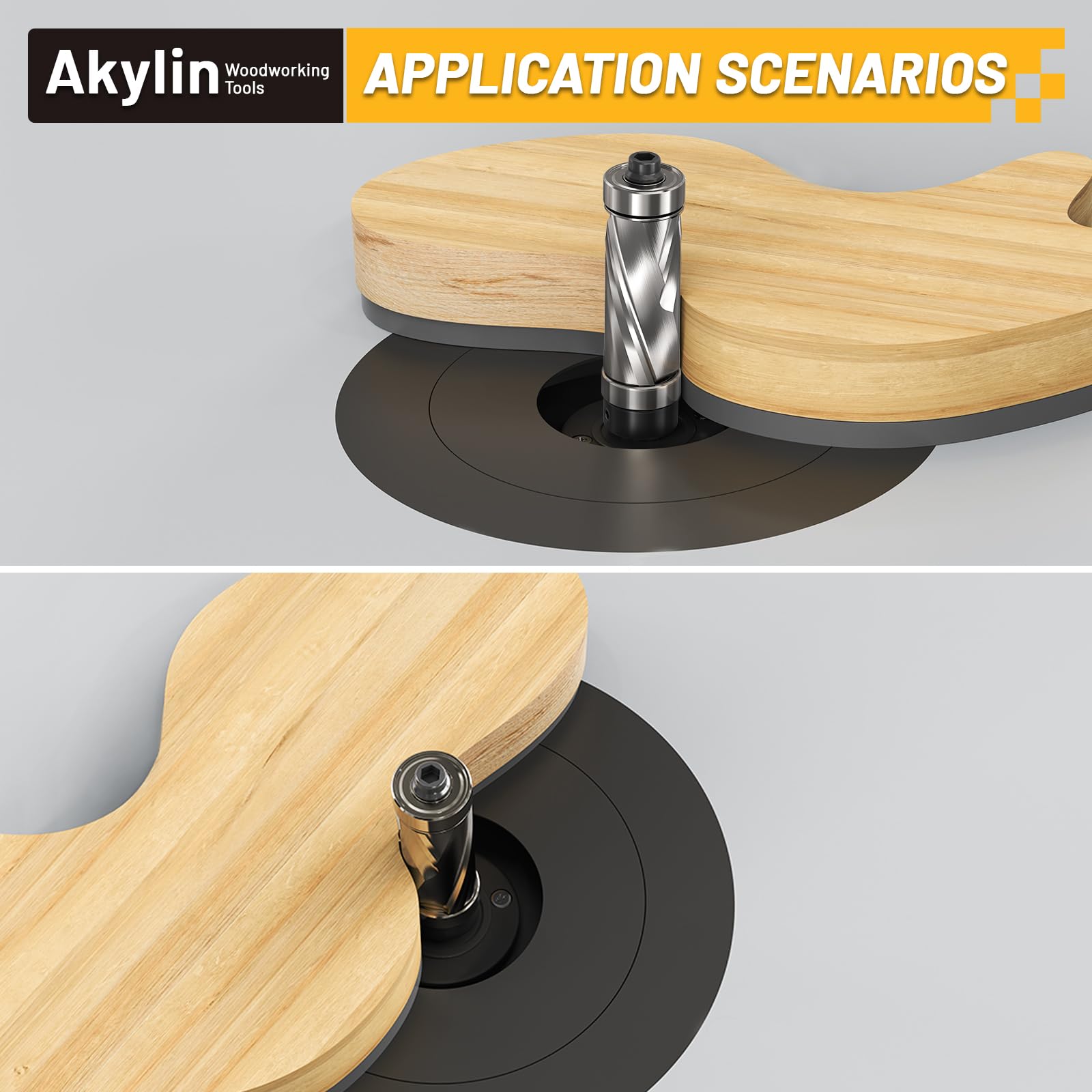

Top and bottom bearing design allows you rout half the curve in one direction, flip the work piece over and rout the other half in the opposite direction without repositioning your pattern.

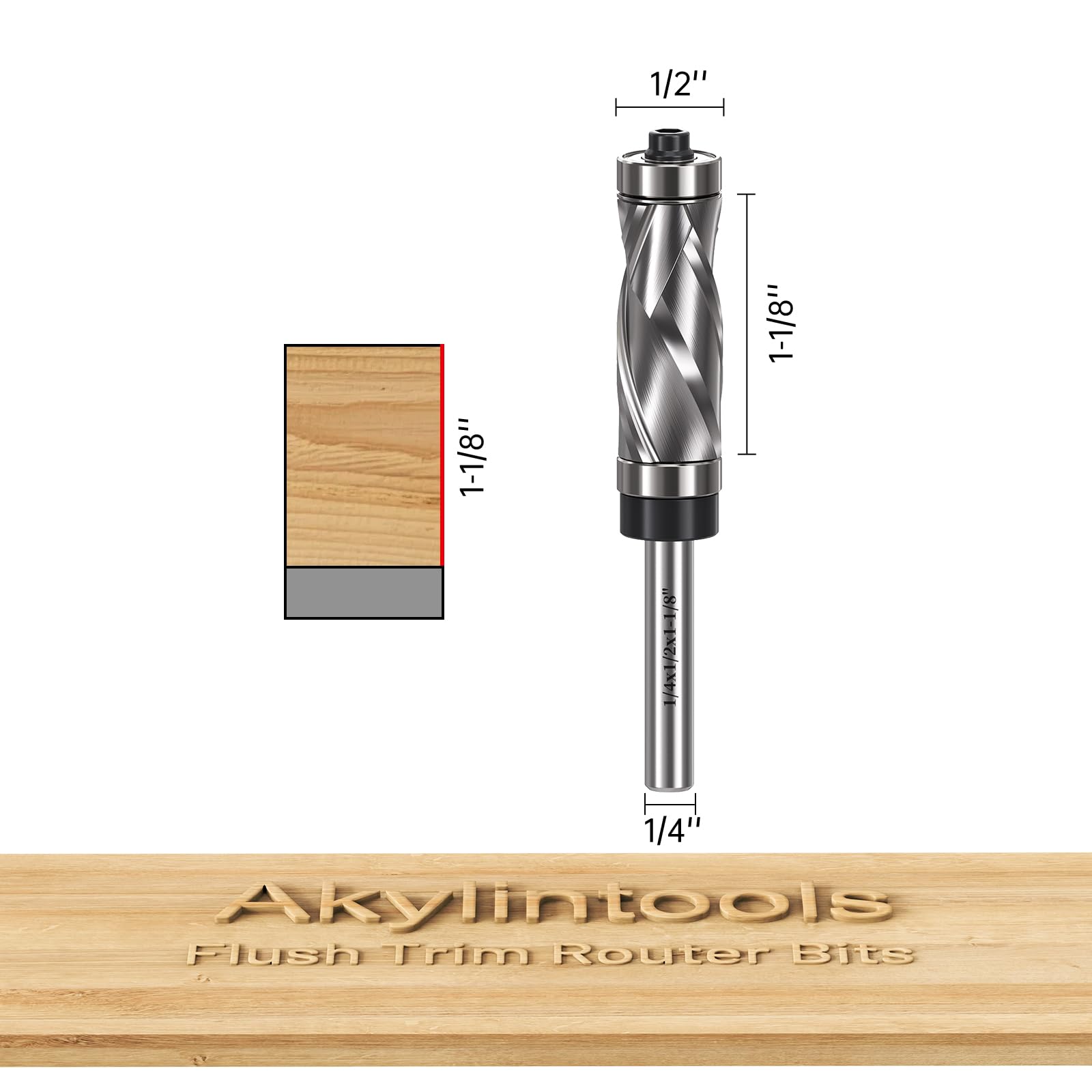

Shank:1/4"
Cutting Diameter:1/2"
Cutting Height:1-1/8"
Product details
| Main Specification | |
|---|---|
| Výrobce | Akylin |
| Počet jednotek | 1 Počet |
| Průměr řezání | 0,5 palce |
| Značka | Akylin |
| Počet položek | 1 |
| Typ řezu | Flush-Trim Cut |
| Délka řezu | 1-1/8 inches |
| Zahrnuté komponenty | Router Bits |
| Průměr položky | 0,5 palce |
| Materiál | Karbid wolframu |
| Velikost | 1/2"x1-1/8" |
| Hmotnost položky | 1,6 unce |
| Product information | |
| Počet balení | 1 |
| Technical Details | |
| Číslo části | US-AKRB0114XBD38-TB |
| Typ materiálu | Karbid wolframu |
| Počet flétn | 4 |
| Others | |
| Zvýraznění položky | 1/4 Shank or Top and Bottom Bearing Flush Cut Router Bit or Spiral Up-Down Carbide Pattern Template Bits for Wood Trimming |
| Typ výrobku | Trim |
| Název velikosti | 1/2"x1-1/8" |
